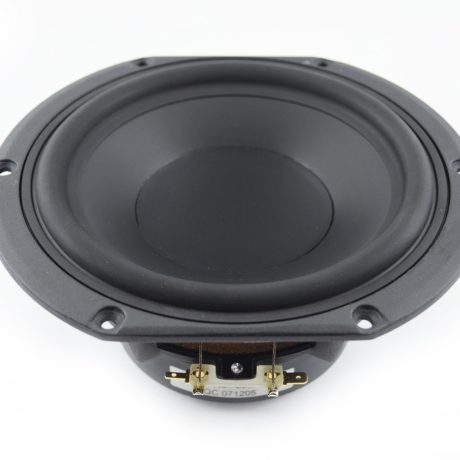

Peerless 830 874 6½″ Midwoofer, 140 Watt, 8 Ohm

	Peerless 830 874 6½″ Midwoofer, 140 Watt, 8 Ohm remove	Faital Pro FPW6N8120RK Recone Kit for FPW6N8120 6" 8 Ohms 120W remove	CELESTION T5641 MID-RANGE 6.5'' NTR06-1705B PRO AUDIO 150W remove	SICA Z004080 6 N 2,5 PL 8Ω 500W PROFESSIONAL SPEAKER NEODYMIUM 6'' remove	JBL LF CONTROL5, CONTROL SB5 C5003 remove	Faital Pro FP6FE100A Speaker FE Series 6'' 8 Ohm 100W remove
Name	Peerless 830 874 6½″ Midwoofer, 140 Watt, 8 Ohm remove	Faital Pro FPW6N8120RK Recone Kit for FPW6N8120 6" 8 Ohms 120W remove	CELESTION T5641 MID-RANGE 6.5'' NTR06-1705B PRO AUDIO 150W remove	SICA Z004080 6 N 2,5 PL 8Ω 500W PROFESSIONAL SPEAKER NEODYMIUM 6'' remove	JBL LF CONTROL5, CONTROL SB5 C5003 remove	Faital Pro FP6FE100A Speaker FE Series 6'' 8 Ohm 100W remove
SKU	830874	FPW6N8120RK	T5641	Z004080	JBL-C5003	FP6FE100A
Rating
Price	€100.01 €82.51 incl. GR VAT	€65.09 €58.59 incl. GR VAT	€143.15 €124.00 incl. GR VAT	€157.56 €124.20 incl. GR VAT	€99.20 €98.18 incl. GR VAT	€44.39 incl. GR VAT
Stock	In stock (can be backordered)	Available on backorder	Available on backorder	Available on backorder	Available on backorder	Available on backorder
Availability	In stock (can be backordered)	Available on backorder	Available on backorder	Available on backorder	Available on backorder	Available on backorder
Add to cart	Add to cart	Add to cart	Add to cart	Add to cart	Add to cart	Add to cart
Description
Content	Specifications Power (RMS): 140 Watt Impedance: 8 Ohm Ευαισθησία: 87 db Size: 6 Inches	Recone kit for FPW6N8120	6.5-inch neodymium magnet mid-range driver with 1.75" voice coil, providing 150Wrms (AES) continuous power handling Suitable for line array applications, utilising a space efficient chassis profile FEA optimised flux distribution in the magnet assembly provides low harmonic distortion M-roll surround provides progressive excursion control, generating a smooth frequency response Intelligent heat management in both chassis and magnet assembly design offers reduced thermal distortion
Nominal diameter (mm/in)	165/6.5
Power Rating (AES, W rms)	150
Nominal impedance (Ω)	8
Voice coil diameter (mm/in)	44.5/1.75
Magnet type	Neodymium
Chassis type	Cast aluminium
Sensitivity (dB)	95.5
Frequency range (Hz)	150-7000
Coil material	Copper clad Aluminium
Cone material	Kevlar loaded paper
Surround material	Cloth-sealed
Suspension	Single
Xmax (mm/in)	2.5/0.098
Gap depth (mm/in)	6.0/0.24
Voice coil winding width (mm/in)	11.0/0.43

Small Signal Parameters

D (m/in)	0.13/5.12
Fs (Hz)	109.6
Mmd (g/oz)	12.069/0.422
Mair	0.857/0.03
Qms	2.632
Qes	0.527
Qts	0.439
Re (Ω)	5.95
Vas (lt/ft3)	4.062/0.143
BI (Tm)	10.03
Cms (mm/N)	0.163
Rms (kg/s)	3.385
Le (mH)

Mounting Information

Overall diameter (mm/in)	189/7.44
Overall depth (mm/in)	71/2.79
Cut-out diameter (mm/in)	145/5.7
Mounting slot dimensions (mm/in)	5.5/0.22 x 7.5/0.3
Number of mounting slots	4
Mounting slot PCD range (mm/in)	172/6.77
Unit weight (kg/lb)	0.85/1.87

Packed Dimensions and Weight

Single pack size W x D x H (mm/in)	-
Single pack weight (kg/lb)	-
Multipack () size W x D x H (mm/in)	-
Multipack () weight (kg/lb)	-

Unit conditioned prior to measurement.

• 2,5'' voice coil fiberglass former and aluminium winding
• Progressive wave spider
• Cloth surround with DAR technology
• Ventilated magnet and voice coil to reduce power compression
• 92.8 dB sensitivity





Manual/Εγχειρίδιο

JBL Control 5, Pro VIII, Factory Speaker Woofer Part # C5003, C5002, C5006

• JBL Control 5, Pro VIII, Factory Speaker Woofer Part # C5003
• This is a complete brand new JBL, Control 5 woofer
• Voice coil: 1" (25mm)
• Diameter: 6.5" (165mm)
• Impedance: 3.9 ohms
• Treated paper cone with foam edge
• Fits JBL Driver and Cabinet Models
• JBL: Control 5, C-5003, C5002, C 5006, Pro VIII, Pro 8



Nominal Diameter     160 mm (6 in)
Overall Diameter     181.2/164 mm (7.13/6.46 in)
Bolt Circle Diameter     167 mm (6.57 in)
Baffle Cutout Diameter     147 mm (5.79 in)
Depth     84.5 mm (3.33 in)
Flange and Gasket Thickness     8 mm (0.31 in)
Net Weight     1.2 Kg (2.64 lb)
Shipping Box
(Single Carton Box - 4 units)     380x393x128 mm (14.9x15.47x5.03 in)
Shipping Weight (4 units)     5.6 Kg (13.82 lb)

Nominal Impedance     8 Ohm
Minimum Impedance     5.9 Ohm
Nominal Power Handling ***     100 W
Maximum Power Handling ****     200 W
Sensitivity (1W/1m)     91 dB
Frequency Range     63÷5000 Hz
Voice Coil Diameter     32 mm (1.26 in)
Winding Material     Cu
Former Material     Kapton
Winding Depth     12.5 mm (0.49 in)
Magnetic Gap Depth     6 mm (0.24 in)
Flux Density     1 T

Fs     61 Hz
Re     5.4 Ohm
Qes     0.6
Qms     6
Qts     0.54
Vas     14.8 dm^3 (0.52 ft^3)
Sd     137 cm^2 (21.23 in^2)
Xmax *     5.25 mm
Xdamage **     13.15 mm
Mms     14 g
Bl     6.8 N/A
Le     0.5 mH
Mmd     13 g
Cms     0.56 mm/N
Rms     0.84 Kg/s
Eta Zero     0.46 %
EBP     102 Hz

Weight0.40 kg1.00 kg0.85 kg1.50 kg1.00 kg5.60 kgDimensionsN/AN/AN/AN/AN/AN/AAdditional information

Weight	0.40 kg

Weight	1.00 kg

Weight	0.85 kg

Weight	1.50 kg

Weight	1.00 kg

Weight	5.60 kg
