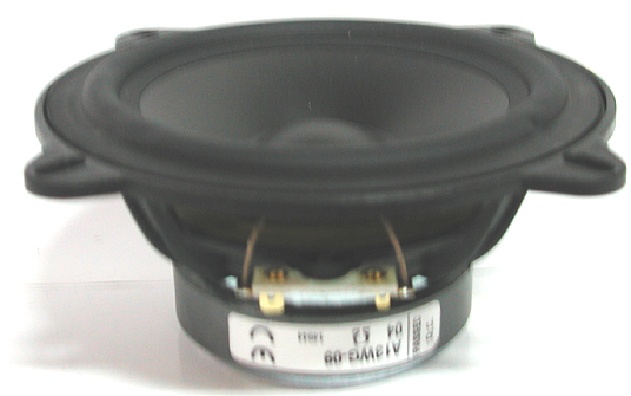

Vifa A13WG09-04 5″ Midwoofer 150W 4Ω

17%
All products by PEERLESS

€108.12 incl. GR VAT

Available on backorder

EAN: N/A
Installments calculation €
CompareAdd to wishlist Submit Better Price
Availability: Upon Request Upon Request SKU: A13WG0904 Category:
5“  Midwoofer  152mm ,150 Watt, 89 db , 4Ω     NRSC Paper Cone ,Removable Mounting Flanges     Vented V.C Former & Magnet System       Τρύπα 116 mm , βάθος 57 mm



Read more

5“  Midwoofer  152mm ,150 Watt, 89 db , 4Ω
NRSC Paper Cone ,Removable Mounting Flanges
Vented V.C Former & Magnet System
Τρύπα 116 mm , βάθος 57 mm
Weight 1 kg
Woofer Inch

Reviews

There are no reviews yet.

Be the first to review “Vifa A13WG09-04 5″ Midwoofer 150W 4Ω”

Your email address will not be published. Required fields are marked *

Quick Comparison

Vifa A13WG09-04 5" Midwoofer 150W 4Ω removeEminence EPRO5MRNA - 5" Speaker 65 W 8 Ohm PRO 5 MRN A removeBMS BMS5CN140H 5" Neodymium Coaxial Speaker 5CN140 130 W + 60 W 16 Ohm removeBMS BMS5CN140L 5" Neodymium Coaxial Speaker 5CN140 130 W + 60 W 8 Ohm removeBMS BMS5CN160H 5 CN 160 - 5" Neodymium Coaxial Speaker 130 W + 25 W 16 Ohm removeB & C Speakers 5-NDL38 Neodymium Speaker 5'' 180W remove
NameVifa A13WG09-04 5" Midwoofer 150W 4Ω removeEminence EPRO5MRNA - 5" Speaker 65 W 8 Ohm PRO 5 MRN A removeBMS BMS5CN140H 5" Neodymium Coaxial Speaker 5CN140 130 W + 60 W 16 Ohm removeBMS BMS5CN140L 5" Neodymium Coaxial Speaker 5CN140 130 W + 60 W 8 Ohm removeBMS BMS5CN160H 5 CN 160 - 5" Neodymium Coaxial Speaker 130 W + 25 W 16 Ohm removeB & C Speakers 5-NDL38 Neodymium Speaker 5'' 180W remove
SKUA13WG0904EPRO5MRNABMS5CN140HBMS5CN140LBMS5CN160H5-NDL38
Rating
Price €108.12 incl. GR VAT €130.19 incl. GR VAT €341.12 incl. GR VAT €341.12 incl. GR VAT €344.24 incl. GR VAT €135.00 incl. GR VAT
Stock

Available on backorder

Only 1 left in stock (can be backordered)

Available on backorder

Available on backorder

Available on backorder

Available on backorder

AvailabilityAvailable on backorderOnly 1 left in stock (can be backordered)Available on backorderAvailable on backorderAvailable on backorderAvailable on backorder
Add to cart

Add to cart

Add to cart

Add to cart

Add to cart

Add to cart

Add to cart

Description
Content
5“  Midwoofer  152mm ,150 Watt, 89 db , 4Ω
NRSC Paper Cone ,Removable Mounting Flanges
Vented V.C Former & Magnet System
Τρύπα 116 mm , βάθος 57 mm
Weighing a mere 2 lbs., the Pro 5MRN neodymium midrange / tweeter driver features a wide usable frequency range and water resistant epoxy treated paper cone for a warm, rich tone. The truncated cast frame chassis allows for tight placement in your pro audio or car audio cabinet, and pair it with a Kappalite model for the ultimate in ultra-light bass guitar performance. SPECIFICATION
  • Nominal Basket Diameter: 5“, 127 mm
  • Nominal Impedance*: 8 Ω
  • Power Rating**
  • Watts: 65 W
  • Music Program: 130 W
  • Resonance: 223 Hz
  • Usable Frequency Range: 325 Hz - 20 kHz
  • Sensitivity***: 93.1 dB
  • Magnet Weight: 4 oz.
  • Gap Height: 0.236“, 6 mm
  • Voice Coil Diameter: 1“, 25 mm
THIELE & SMALL PARAMETERS
  • Resonant Frequency (fs): 223 Hz
  • DC Resistance (Re): 5.45 Ω
  • Coil Inductance (Le): 0.18m H
  • Mechanical Q (Qms): 2.8
  • Electromagnetic Q (Qes): 0.93
  • Total Q (Qts): 0.7
  • Compliance Equivalent Volume (Vas): 0.85 liters / 0.03 cu.ft.
  • Peak Diaphragm Displacement Volume (Vd): 3.6 cc
  • Mechanical Compliance of Suspension (Cms): 0.12 mm/N
  • BL Product (BL): 5.84 T-M
  • Diaphragm Mass Inc. Airload (MMs): 4 grams
  • Efficiency Bandwidth Product (EBP): 239
  • Maximum Linear Excursion (Xmax): 0.51 mm
  • Surface Area of Cone (Sd): 71.3 cm2
  • Maximum Mechanical Limit (Xlim): 5.0 mm
MOUNTING INFORMATION
  • Recommended Enclosure Volume
  • Sealed: 0.85-1.56 liters / 0.03-0.06 cu.ft.
  • Vented: - liters / - cu.ft.
  • Driver Volume Displaced: 0.494 cu.ft. / 14 liters
  • Overall Diameter: 5.25“, 133.4 mm
  • Baffle Hole Diameter: 4.28“, 108.7 mm
  • Front Sealing Gasket: Yes
  • Rear Sealing Gasket: Yes
  • Mounting Holes Diameter: 0.18“, 4.6mm
  • Mounting Holes B.C.D.: 4.79“, 121.7mm
  • Depth: 2.16“, 54.8 mm
  • Net Weight: 2 lbs, 0.91 kg
  • Shipping Weight: 2.2 lbs, 1 kgs
MATERIALS OF CONSTRUCTION
  • Coil Construction: Pure aluminum voice coil
  • Coil Former: Kapton former
  • Magnet Composition: Neodymium magnet
  • Core Details: Vented and Extended core
  • Basket Materials: Die-cast aluminum basket
  • Cone Composition: Treated paper cone
  • Cone Edge Composition: Cloth cone edge
  • Dust Cap Composition: Treated paper dust cap
  • 91 dB sensitivity 1 W / 1 m
  • 130 W + 60 W Power Handling
  • 1.5" + 1.5“ Copper Voice Coil
  • Single Point Source providing coherent Wave Front
  • 90° conical Dispersion
  • Optimal for compact 2-way Systems
  • 91 dB sensitivity 1 W / 1 m
  • 130 W + 60 W Power Handling
  • 1.5" + 1.5“ Copper Voice Coil
  • Single Point Source providing coherent Wave Front
  • 90° conical Dispersion
  • Optimal for compact 2-way Systems

5" Neodymium Coaxial Transducer

  • 90 dB sensitivity 1 W / 1 m
  • 130 W + 25 W Power Handling
  • 1.5" + 1" Voice Coil
  • Single point source providing coherent wave front
  • 90° conical dispersion
  • Optimal for compact 2-way Systems
  • 180 W continuous program power capacity
  • 38 mm (1.5 in) copper voice coil
  • 90 - 7000 Hz response
  • 90 dB sensitivity
  • Shorting copper cap for extended HF response

SPECIFICATIONS

Nominal Basket Diameter

5" / 127mm

Impedance

8 ohms

RMS Power Rating

90 Watts

Program Power

180 Watts

Frequency Response

90Hz - 7.0kHz

Sensitivity (1W/1m)

90dB

Voice Coil Diameter

1.5" / 38mm

Winding Material

Aluminum

Former Material

Kapton

Winding Depth

.37" / 9.5mm

Magnetic Gap Depth

.24" / 6mm

Flux Density

1.15T



MOUNTING INFORMATION

Overall Diameter

5.9" / 150mm

Bolt Circle Diameter

5.6" / 142mm

Baffle Cutout Diameter

4.8" / 122mm

Depth

2.95" / 75mm

Flange & Gasket Thickness

.35" / 9mm

No. Of Mounting Holes

4

Net Weight

1.9 lbs./ .85 kg.



THIELE-SMALL PARAMETER

Resonant Frequency (fs)

92Hz

Impedance (Re)

5.5 ohms

Electrical Factor(Qes)

.5

Mechanical Q (Qms)

11

Total Q (Qts)

.48

Compliance Equiv. Vol. (Vas)

3.3 Liters/.12cu. ft.

Voice Coil Overhang (Xmax)

3.3mm

Reference Efficiency

0.5%

BL Factor

8.5 T-M

Coil Inductance(Le)

0.35mH

Surface Area of Cone (Sd)m2

0.0095m2
Weight1 kg0.91 kg1.14 kg1.14 kg0.96 kg1.10 kg
DimensionsN/AN/AN/AN/AN/AN/A
