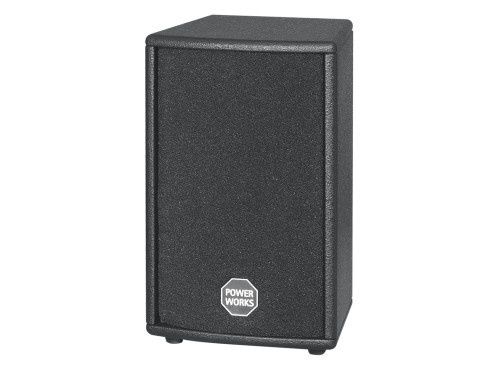

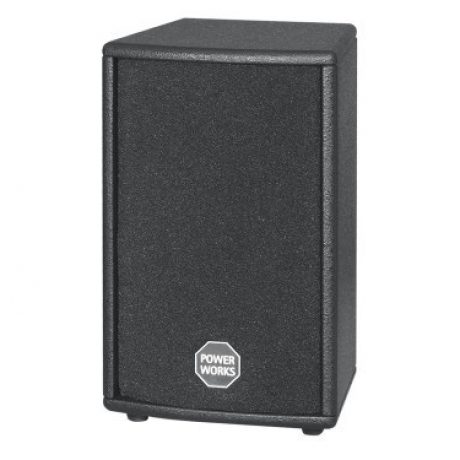

HK Audio RS 82 Powerworks Compact 2-Way Speaker 250 Watts

The C3108 is a full range extremely versatile wide-dispersion, low profile, two-way loudspeaker system for near field applications.

Its compact size makes it ideal for low visibility side wall mounting.
The high-frequency section is a constant directivity horn loaded to a 1” neodymium compression driver with a 1.5” diaphragm assembly for smooth, wide dispersion. The low-frequency transducer is an 8” woofer with a 2” voice coil.


Ειδική έκδοση του AM 7200/64 για χρήση σε
εξωτερικό περιβάλλον με επιπλέον αναβάθμιση
14 σημείων. Πιστοποίηση IP55 κατά πρότυπο IEC
529. Παράδοση κατόπιν παραγγελίας.

* 60° x 40° Coverage, rotatable for use in either vertical or horizontal orientation.

    * CMCD™ Cone Midrange Compression Driver provides low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherency.

    * 2432H High-Frequency Compression Driver

    * PT™ Progressive Transition Waveguide for excellent pattern control with low distortion.

    * Bi-Amp/Passive Switchable.

    * Optional planar array frame kits (see AE Series Array Guide).


Frequency Range (-10 dB)       :       260 Hz – 20 kHz

Frequency Response (±3 dB)       :       330 Hz – 18 kHz

Coverage Pattern       :       60° x 40°, rotatable waveguide

Directivity Factor (Q)       :       20

Directivity Index (DI)       :       13 dB

Crossover Modes       :       Bi-amp/Passive switchable

Crossover Frequency       :       2.3 kHz

Transducer Power Rating (AES)       :       MF: 350 W (1400 W peak), 2 hrs
HF: 100 W (400 W peak), 2 hrs

Long-Term System Power Rating (IEC)       :       MF/HF: 200 W (800 W peak), 100 hrs

Maximum SPL       :       Bi-amp mode:
MF: 133 dB-SPL cont avg (139 dB peak)
HF: 135 dB-SPL cont avg (141 dB peak)
Passive mode:
MF/HF: 133 dB-SPL cont avg (139 dB peak)

System Sensitivity (1W @ 1m):       :       Passive mode: 108 dB SPL

Nominal Impedance       :       8 ohms

Midrange Driver       :       JBL CMCD-82H Cone Midrange Compression Driver with integral 200 mm (8 in) diameter Differential Drive® dual voice-coil internal driver

Sensitivity (1W @ 1m)
(Midrange)       :       108 dB SPL

High Frequency Driver       :       JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil

Sensitivity (1W @ 1m)
(High Frequency)       :       115 dB SPL

Waveguide       :       PT-K64MH

Enclosure       :       Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood

Suspension Attachment       :       13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware

Finish       :       Black DuraFlex™ finish.
White available upon request.

Grille       :       Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.

Input Connector       :       NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.

Environmental Specifications       :       Mil-Std 810; IP-x3 per IEC529.

Dimensions (H x W x D in vertical cabinet orientation)       :       548 x 561 x 657 mm
(21.6 x 22.1 x 25.9 in)

Net Weight       :       27.2 kg (60 lb)

Optional Accessories       :       M10 x 35 mm forged shoulder eyebolts with washers. Optional planar array frame kit. See AE Series Bracket Guide.

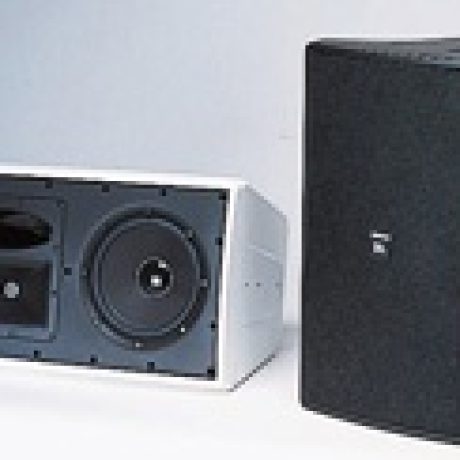

The P4228 is a weatherproof full range, wide-dispersion, two way loudspeaker system offering substantial power and efficiency for a variety of professional indoor or outdoor applications.

The high frequency section is a constant directivity CMD horn loaded with a 1.4” RCF Precision Neodymium compression driver with a 2.5” diaphragm assembly for smooth, wide dispersion. The low-frequency transducer is a double 8” woofer with a 2.5” voice coil.  The cabinet is asingle piece rotational moulded in medium density polyethylene, full UV protected. The cabinet is equipped with 4 x M8 brass inserts, a stainless steel U-Bracket. The front logo is in aluminium and rotatable. The grille is in custom perforated aluminium with open-cell fibres and water repellent woven fabric backing. P 4228 is suitable for indoor and outdoor applications/installations, it meets the requirements of IP 55 code (International Protection Rating).

• 37 Hz to 18 kHz frequency range
  (-10 dB)
• 150W pink noise, 300 watts continuous program power capacity
• 110 x 85 degree coverage with rotatable horn
• 115W, 55W, 28W at 70V/100V (plus 14W taps at 70V only)
• 8 Ohm Bypass
• Outdoor-rated screw down input terminal strip (with MTC-PC2 sealed entrance cover)
• Available in black or white (Control 29AV-WH)
• Dimensions (HxWxD): 518 mm x 305 mm x 280 mm (20.3 in x 12.0 in x 11.0 in)
• Net Weight: 12.2 kg (26.8 lb)

The latest addition to TOA's acclaimed speaker line, the new F-2000 and F-1000 Series of compact,
high efficiency two-way speakers achieve higher performance levels for wide range frequency response and power handling.
Designed to be extremely versatile in order to meet different installation and application requirements, the new F-2000 and F-1000 Series are ideal solutions that solve increasing
needs for adaptable sound reinforcement.

• Finish in Black or White
• Weather proof version available (F-2000BTWP)
• Low impedance and 100V versions (F-2000BT)
• External rotary control for various impedance settings
• Multi position Bracket included
• Built in speaker protection

Various mounting brackets
enables a wide variety of installations, for example on walls, ceilings and speaker stands. Moreover, additional available brackets make even more demanding installations possible.
