Original price was: €45.00.€37.13Current price is: €37.13. incl. GR VAT
Available on backorder
EAN: N/A
| Range/Type | Full Range |
| Sensitivity | 82.2 dB |
| Fs | 111 Hz |
| Qts | 0.72 Qts |
| Impedance | 8 Ω |
| Size | 2.5 in | 63.5 mm |
| Power | 25 W |
| Platform: | Peerless |
| Driver Type: | Full Range |
| Size: | 2.5 in |
| Motor: | Neodymium |
| Frame: | Plastic Basket |
| Impedance: | 8 Ω |
| Diaphragm: | Al (Aluminium) |
| Weight | 0.30 kg |
|---|---|
| Speaker Inch |

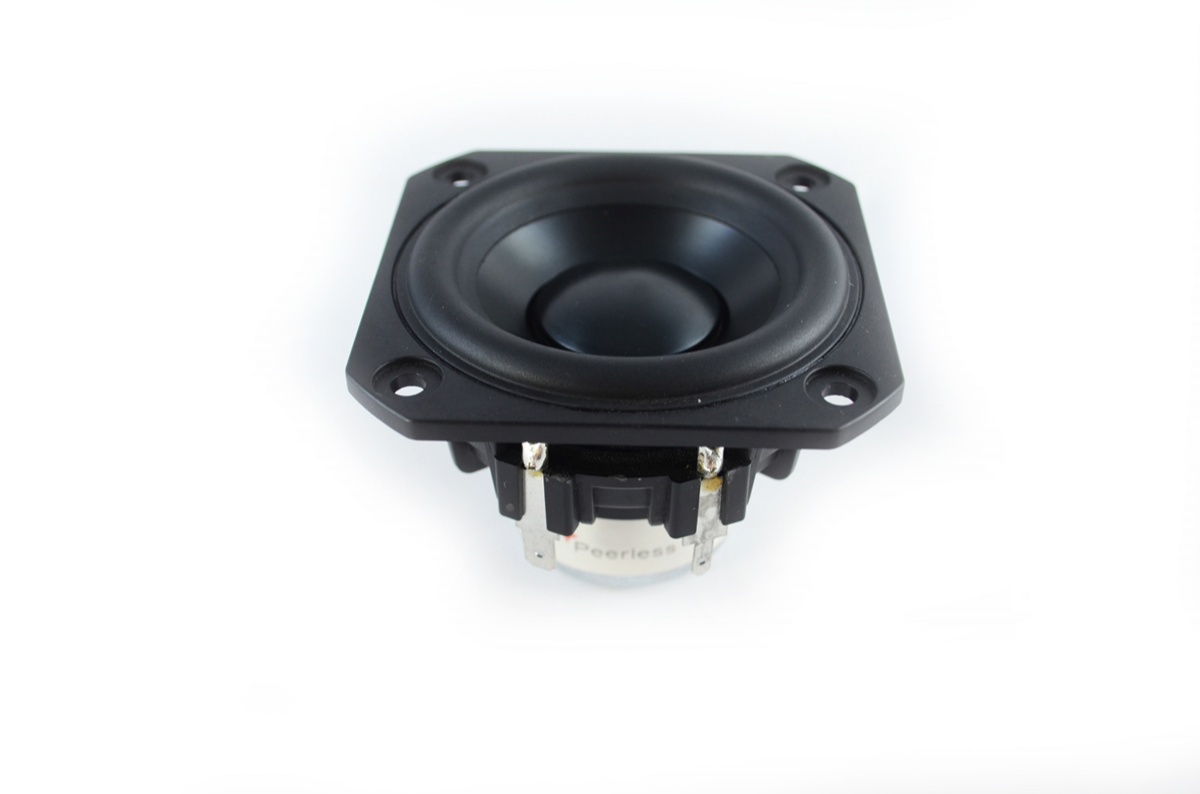

| Peerless 830 984 Full Range Woofer 2.5" remove | JBL LF CONTROL 25 5,25" Replacement Speaker 124-10000-00 remove | Faital Pro FP5FE100A Speaker FE Series 5'' 8 Ohm 80W remove | Faital Pro FP5FE120A Speaker FE Series 5'' 8 Ohm 80W remove | JBL 2106H 339485-001X Midrange Driver 2106HPL remove | BMS BMS5CN160L 5 CN 160 - 5" Neodymium Coaxial Speaker 130 W + 25 W 8 Ohm remove | |||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name | Peerless 830 984 Full Range Woofer 2.5" remove | JBL LF CONTROL 25 5,25" Replacement Speaker 124-10000-00 remove | Faital Pro FP5FE100A Speaker FE Series 5'' 8 Ohm 80W remove | Faital Pro FP5FE120A Speaker FE Series 5'' 8 Ohm 80W remove | JBL 2106H 339485-001X Midrange Driver 2106HPL remove | BMS BMS5CN160L 5 CN 160 - 5" Neodymium Coaxial Speaker 130 W + 25 W 8 Ohm remove | ||||||||||||||||||||||||||||
| Image |  |  |  |  |  |  | ||||||||||||||||||||||||||||
| SKU | Peerless 830 984 | JBL-124-10000-00 | FP5FE100A | FP5FE120A | 339485-001 | BMS5CN160L | ||||||||||||||||||||||||||||
| Rating | ||||||||||||||||||||||||||||||||||
| Price | Original price was: €45.00.€37.13Current price is: €37.13. incl. GR VAT | Original price was: €167.00.€155.00Current price is: €155.00. incl. GR VAT | Original price was: €54.28.€34.71Current price is: €34.71. incl. GR VAT | €41.06 incl. GR VAT | Original price was: €210.80.€199.21Current price is: €199.21. incl. GR VAT | Original price was: €405.00.€344.24Current price is: €344.24. incl. GR VAT | ||||||||||||||||||||||||||||
| Stock | Available on backorder | In stock (can be backordered) | Available on backorder | Available on backorder | Available on backorder | Available on backorder | ||||||||||||||||||||||||||||
| Availability | Available on backorder | In stock (can be backordered) | Available on backorder | Available on backorder | Available on backorder | Available on backorder | ||||||||||||||||||||||||||||
| Add to cart | ||||||||||||||||||||||||||||||||||
| Description | ||||||||||||||||||||||||||||||||||
| Content |

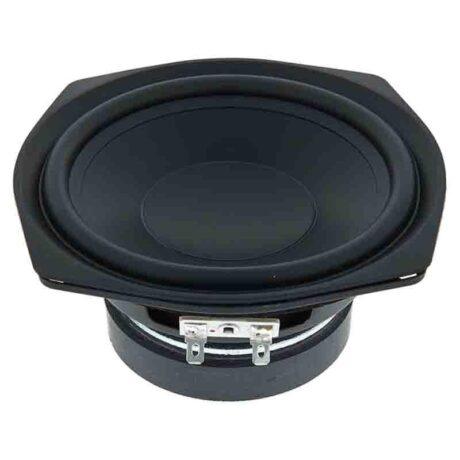

| JBL Replacement Woofer for Control 25 Loudspeaker 124-10000-00 Replacement woofer for JBL's Control 25 Loudspeaker. |

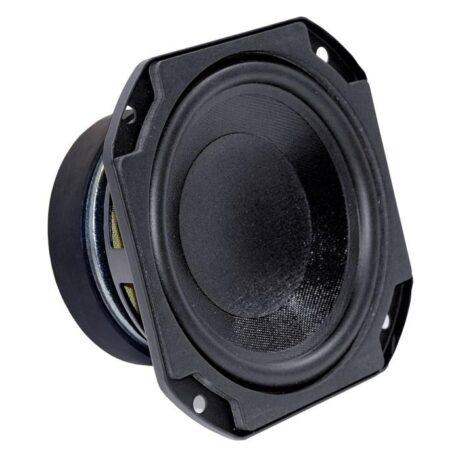

Faital Pro 5 FE 100 A Type PA Nominal Diameter 5 " Nominal Diameter 130 mm Voice Coil 1.26 " Voice Coil 32 mm Overall diameter 124.5 mm Pitch Circle Diameter 133 mm Cut- out Measurement 114 mm Mounting holes 4 Diameter of fixing holes 6 mm Depth 65 mm Nominal Impedance 8 Ohm(s) Nominal Load Capacity 80 W maximum rated load 160 W Sensitivity (1 W / 1 m) 88 dB Frequency response 65 - 6300 Hz Voice Coil Material copper Magnet Ferrite Depth of the magnetic gap 6 mm Thiele & Small Parameter Fs (Resonance Frequency) 65 Hz Re (DC resistance) 5.4 Ohm(s) Qms (mechanical quality) 8.18 Le (inductance of the voice coil) 0.53 mH Qes (electrical quality) 0.47 Qts (overall quality) 0.44 Vas (equivalent volume) 5.16 Mms (moving mass) 10.5 g BL (power factor) 6.9 T/m Xmax (maximum displacement) 5.25 mm Cms (elasticity of the suspension) 0.55 mm/N Sd (membrane area) 79.8 cm² Rms (mechanical loss resistance) 0.57 kg/s Weight 1,12 kg |
Product type Loudspeaker Chassis Type PA Nominal Diameter 5 " Nominal Diameter 130 mm Voice Coil 1.26 " Voice Coil 32 mm Overall diameter 124.6 mm Pitch Circle Diameter 133 mm Section Diameter 114 mm Mounting holes 4 Diameter of fixing holes 6 mm Depth 65 mm Nominal Impedance 8 Ohm(s) Nominal Load Capacity 80 W maximum rated load 160 W Sensitivity (1 W / 1 m) 88 dB Frequency response 63 - 6300 Hz Voice Coil Material copper Magnet Ferrite Depth of the magnetic gap 6 mm Thiele & Small Parameter Fs (Resonance Frequency) 65 Hz Re (DC resistance) 5.4 Ohm(s) Qms (mechanical quality) 7.35 Le (inductance of the voice coil) 0.41 mH Qes (electrical quality) 0.46 Qts (overall quality) 0.43 Vas (equivalent volume) 5.16 Mms (moving mass) 11 g BL (power factor) 6.9 T/m Xmax (maximum displacement) 5.25 mm Cms (elasticity of the suspension) 0.55 mm/N Sd (membrane area) 79.8 cm² Rms (mechanical loss resistance) 0.7 kg/s Weight 1,12 kg | Genuine JBL 2106H, 2106HPL Midrange Driver #339485-001X used in VerTec Series VT4888 & VT4888DP-AN/CN/DA. |
6.5" Neodymium Coaxial Transducer
| ||||||||||||||||||||||||||||
| Weight | 0.30 kg | 1.00 kg | 1.50 kg | 10.20 kg | 3.00 kg | 0.96 kg | ||||||||||||||||||||||||||||
| Dimensions | N/A | N/A | N/A | N/A | N/A | N/A | ||||||||||||||||||||||||||||
